Description

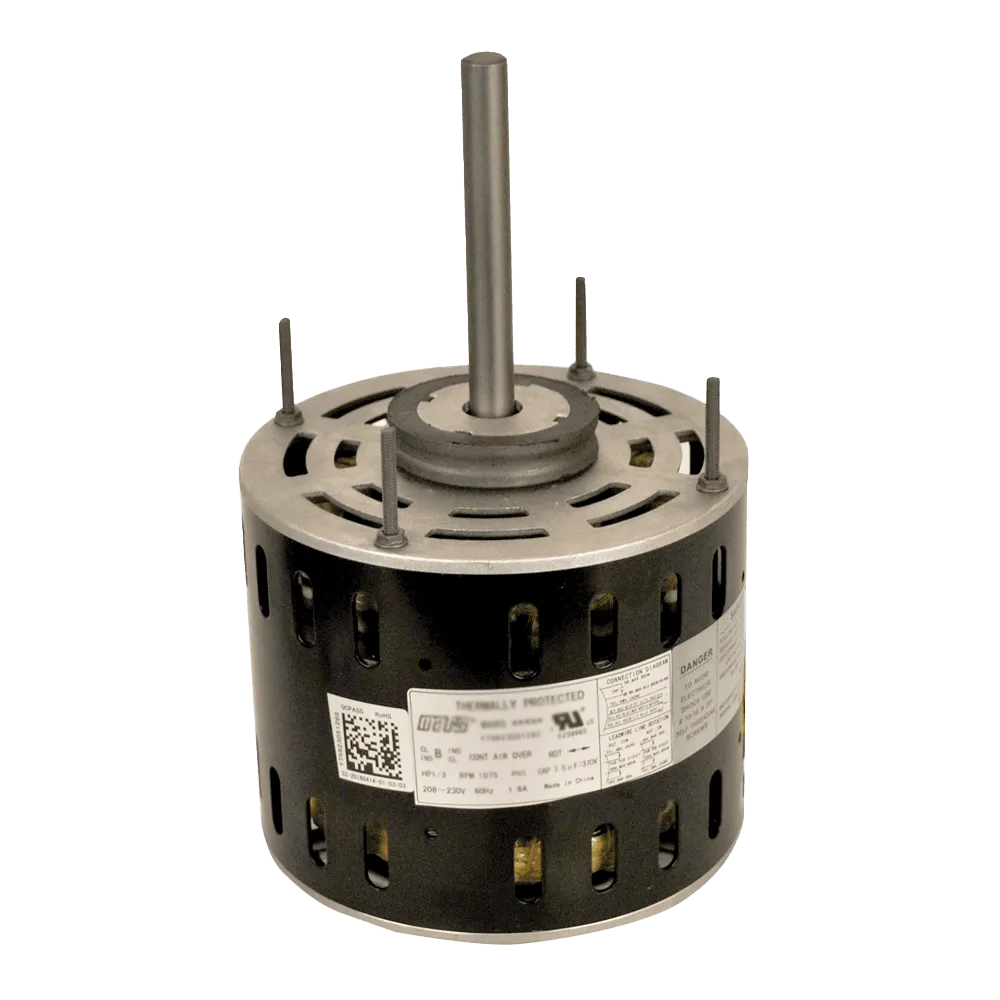

MARS High Efficiency direct drive blower motors save ENERGY. Designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements.

Features

• Optimized high efficiency design
• 12-15% more efficient compared to standard motors
• Permanently lubricated ball bearings
• Rheem mounting holes
• Extended thru bolts, shaft end
• 3 Speeds
• Open Construction

Product Details:

• Motor Type: PSC
• Enclosure: OPAO
• H.P. (Max.): 1/3
• Voltage: 208-230
• Speeds: 3
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: cULus
• FLA: 1.6
• Mount: ThruBolt/All Angle
• Bearing: Ball
• Shaft Length Inches: 4.5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 40
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 7.5/370
